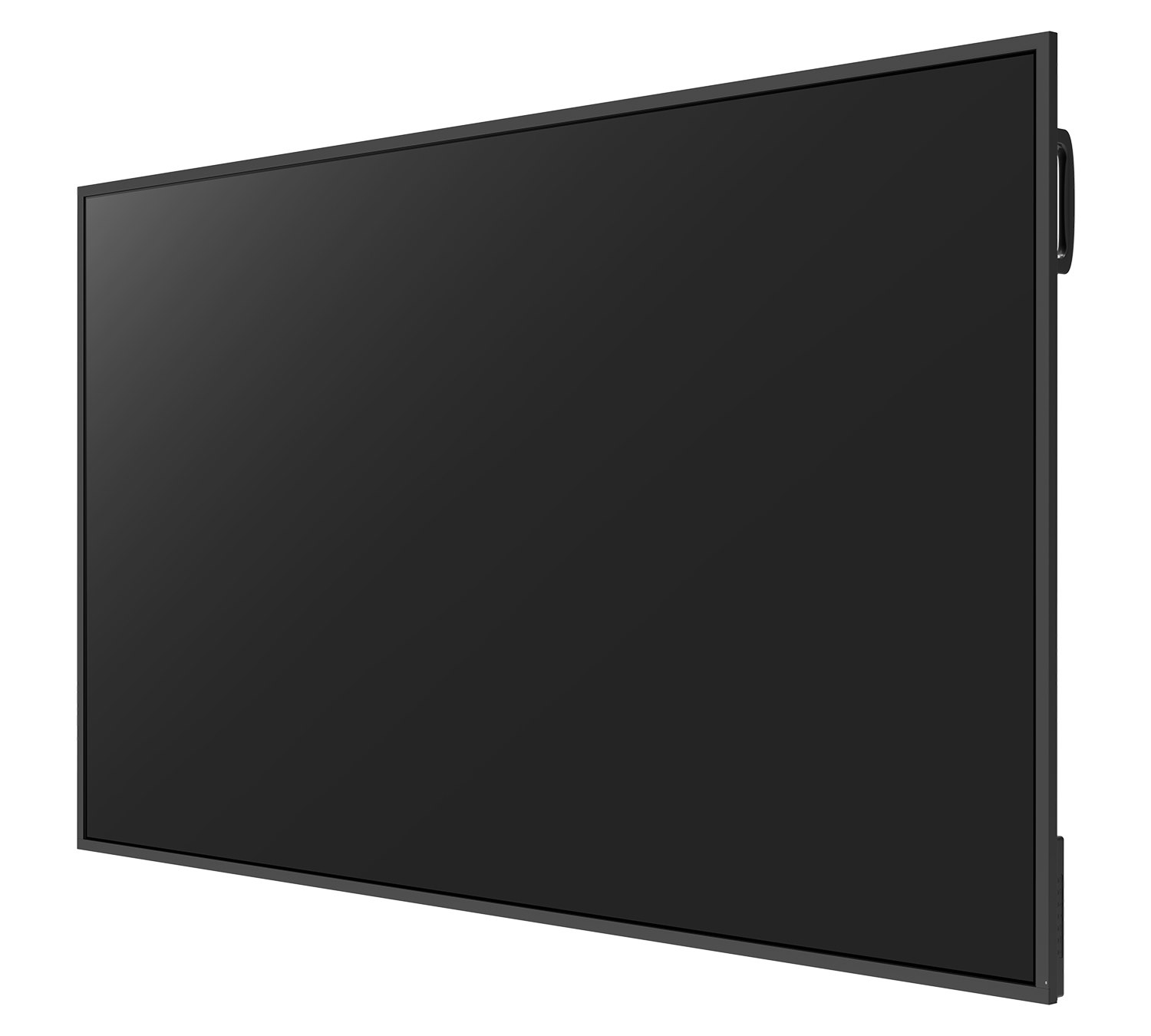

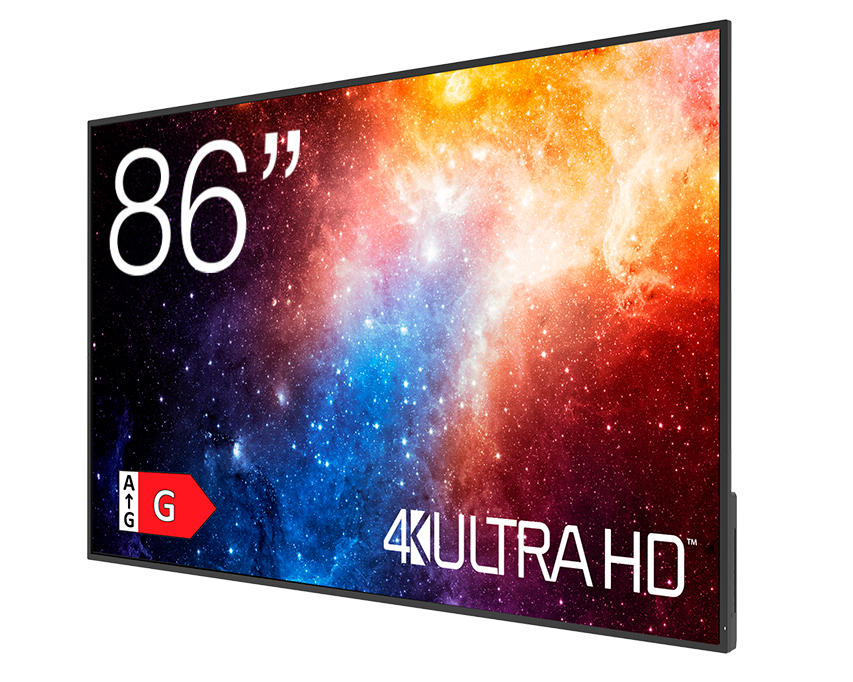

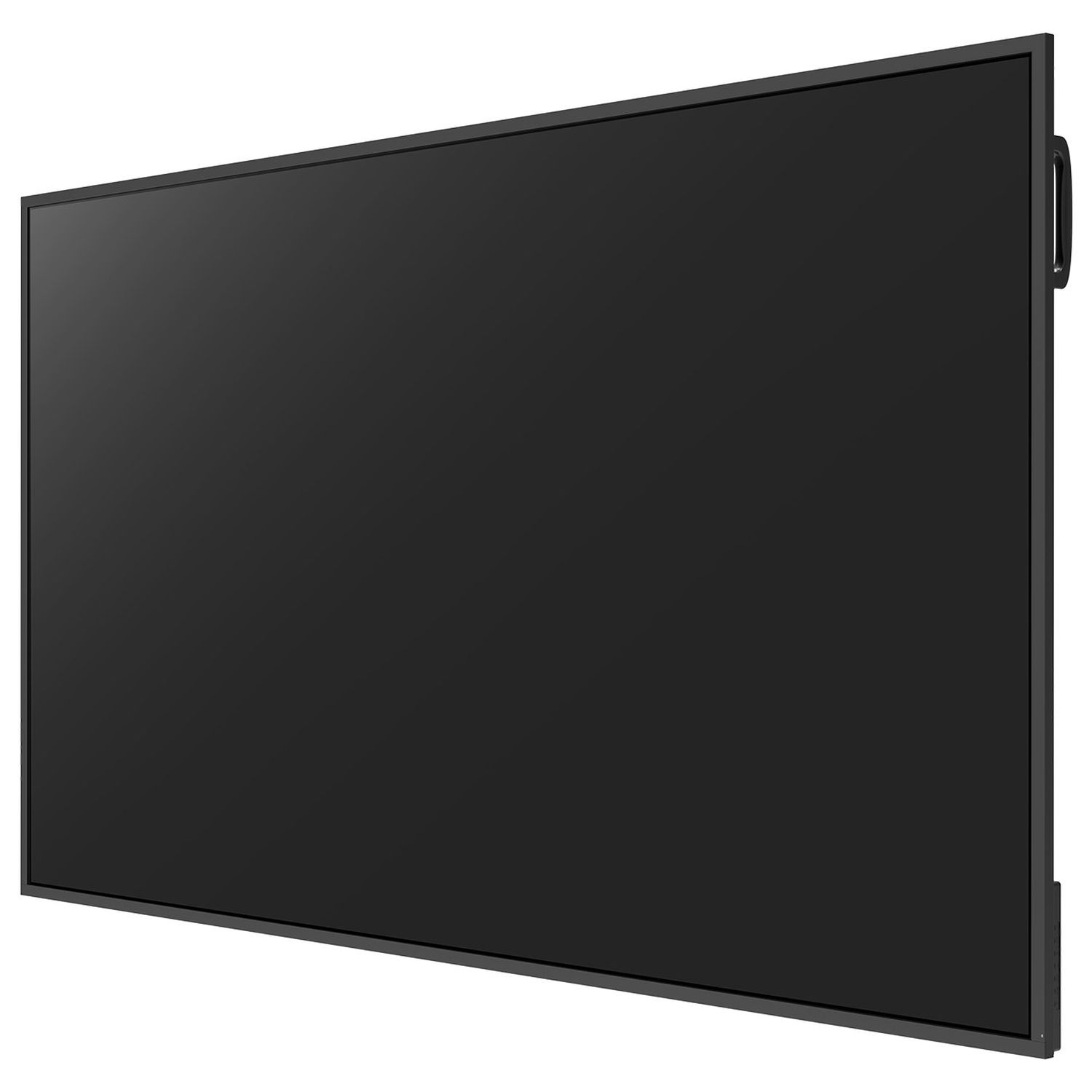

A professional-grade 86" 4K UHD display designed for digital signage, wireless presentations, and reliable 24/7 operation in business and public environments.
-
Crisp 4K visuals for large meeting rooms and public environments
- 24/7 reliable operation for continuous content playback
- Wireless screen sharing from laptops and mobile devices with Display Share
-
Built‑in media playback for simple digital signage
-
Remote monitoring and control via Optoma Management Suite Cloud (OMSC)
-
Flexible installation options for different spaces and mounts
Features
Optoma Management Suite (OMS) enables remote monitoring, content management, and maintenance—reducing downtime, site visits, and operational costs.
Simple installation, intuitive operation, and long‑term reliability make the N Series ideal for scalable corporate rollouts.
Built‑in Display Share supports fast, cable‑free screen sharing, enabling efficient meetings and flexible working.
High brightness, strong contrast, and a seamless LED surface deliver reliable performance in well‑lit corporate spaces.

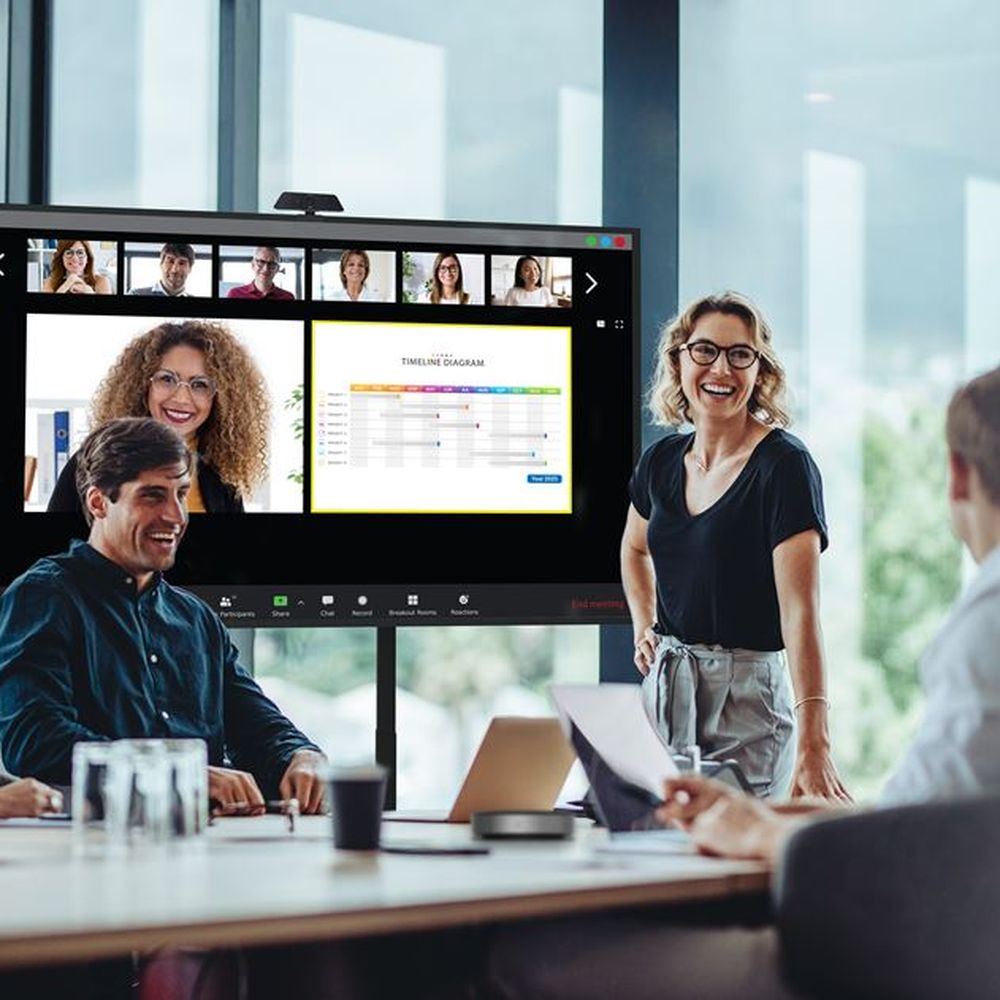

Hybrid collaboration
Encourage team collaboration in a hybrid work environment utilising Optoma’s video conferencing solutions and enabling access to content from any location.
Premium display with superior brightness, low blue light filter and flicker-free technology Whiteboard and Display Share exclusive software, and built-in apps for file sharing and device management Optimized for conferencing solutions such as web cameras, Bluetooth speakers, and motorized carts Supports both portrait and landscape orientation

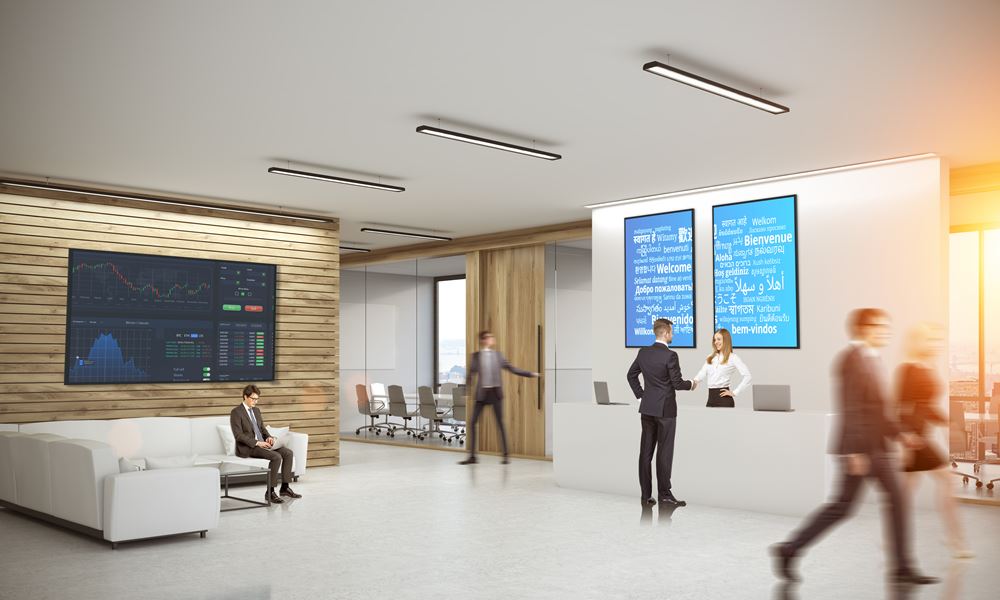

Improve your brand image

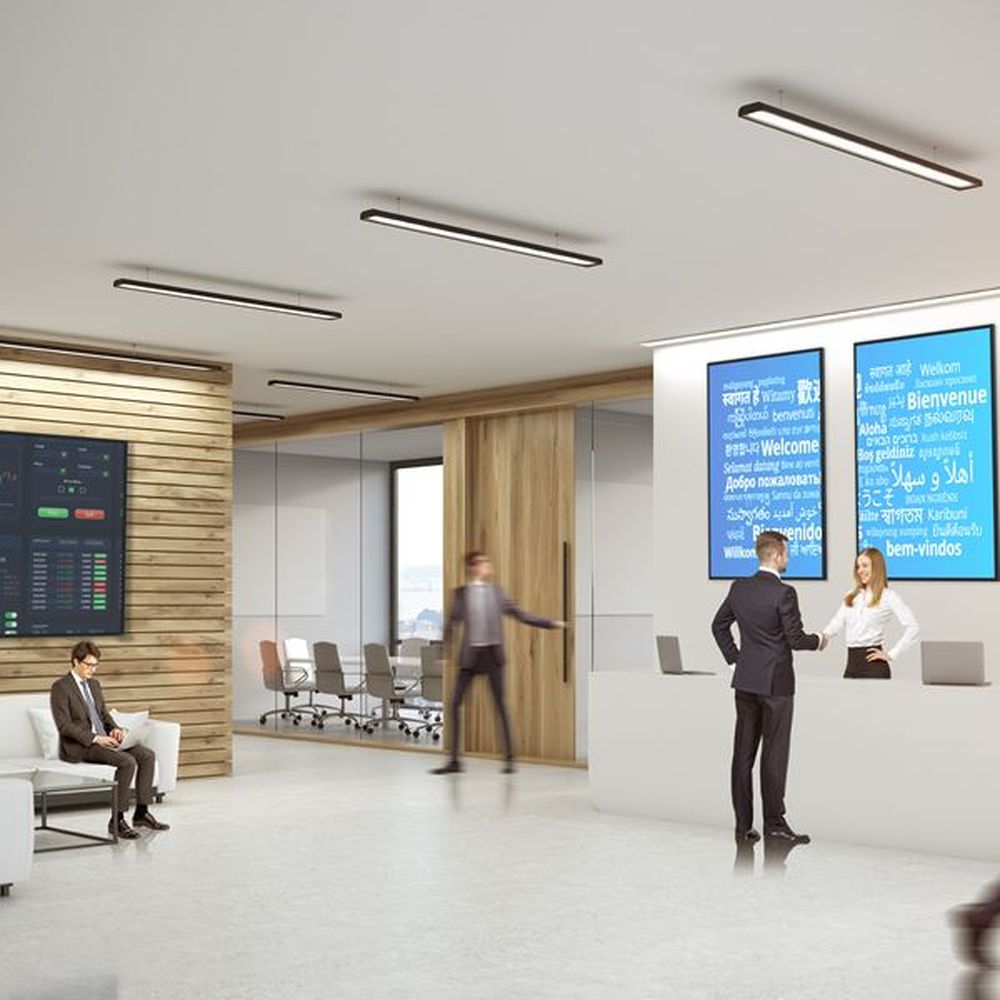

Optoma’s N-Series Professional Displays are perfect for lobbies and reception areas.

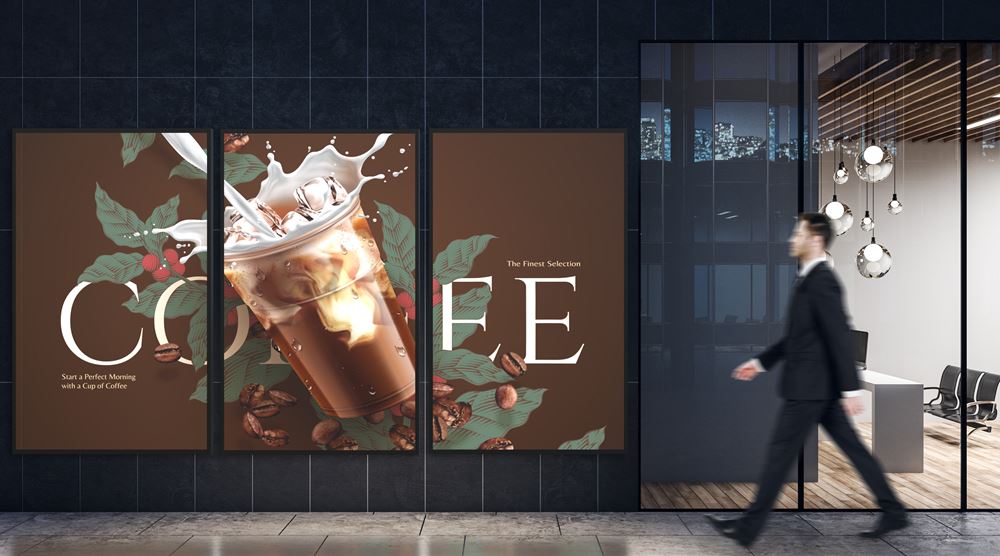

Display information your way.
With a built-in media player and scheduling functionality, you can create, customise and schedule your own media playlists and display content at a specific date or time.

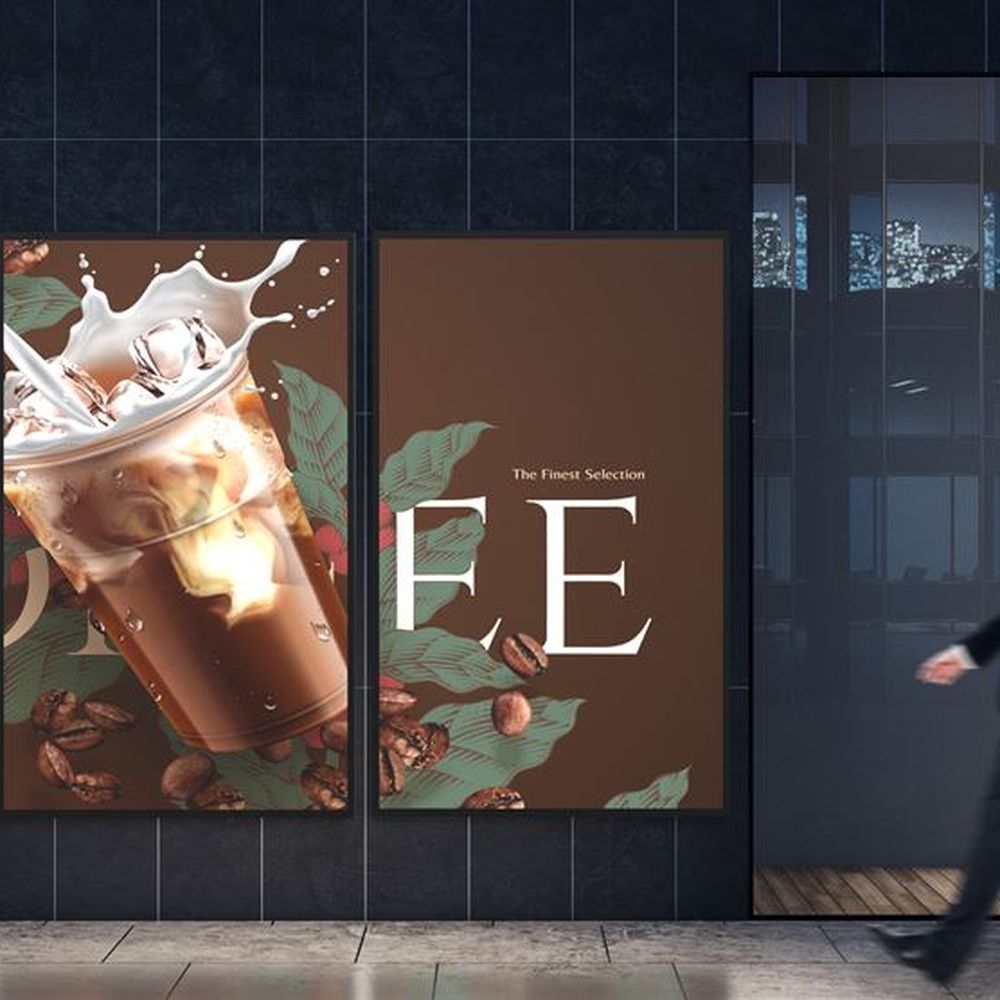

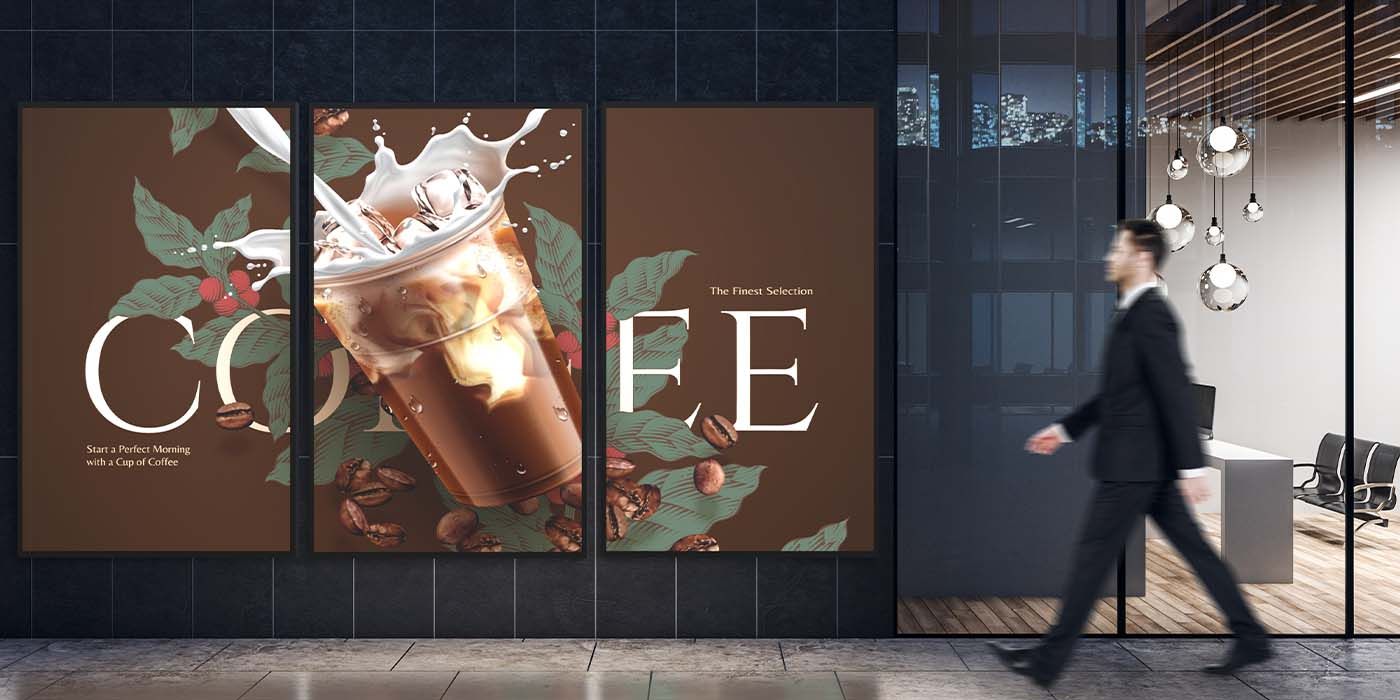

Optoma’s N-Series is the ideal solution for digital signage. Customise your content and display in either portrait or landscape orientation across one or multiple displays.
Gallery

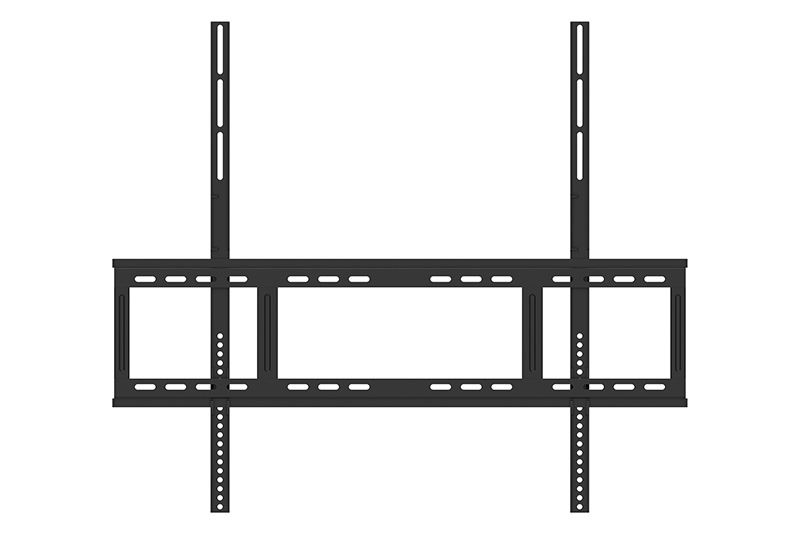

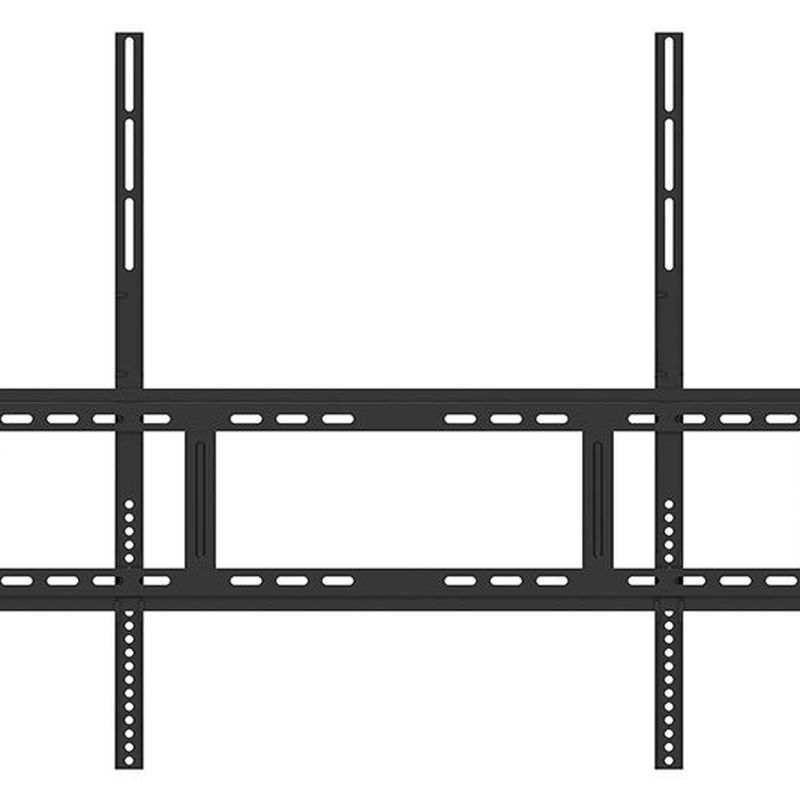

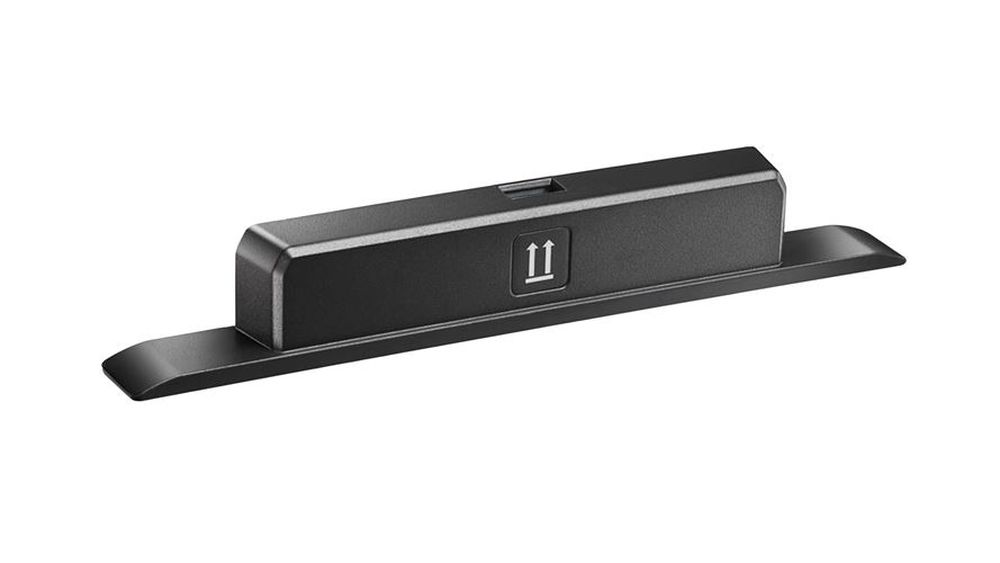

Accessories
Specifications
Display
| Specification | Value |
|---|---|
| Back light | Direct type LED |
| Size (diagonal) | 86" |
| Display Type | ADS |
| Resolution | 3840x2160 |
| Brightness | 500 |
| Contrast ratio | 1,200:1 |
| Contrast ratio (dynamic) | 3,000:1 |
| Viewing angle | 178° |
| Response time | 8ms |
| Life | 50,000 hours |
| Display colours | 1070 |
| Speaker count | 2 |
| Watts per speaker | 10W |
| Surface hardness | 3H |
| Haze | 25% |
| Operating Humidity | 10% - 90% |
| Storage Temperature (celsius) | -20℃ -60℃ |
| Storage Humidity | 10% - 90% |
Physical spec
| Specification | Value |
|---|---|
| Dimensions (W x D x H) mm | 1931 x 81.6 x 1102 mm / 76.02" x 3.21" x 43.39" |
| Wall-hanging screw spec | M8*25mm |
| VESA holes | 800*600 |
| In the box | European Standard Power Cord American Standard Power Cord British Standard Power Cord HDMI Cable 3M Remote Control Battery QSG |

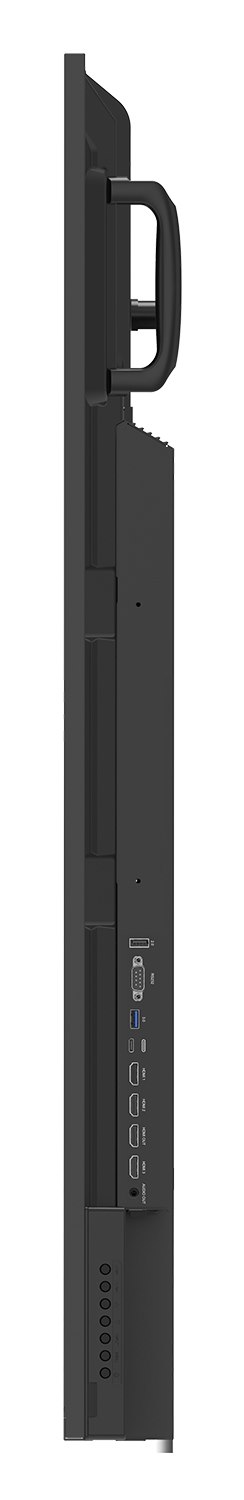

| Connections | Inputs 3 x HDMI 2.0, 1 x USB-C power, 1 x USB 2.0, 1 x USB 3.0, 1 x RS232, 1 x RJ45, 1 x OPS slot Outputs 1 x HDMI 2.0, 1 x Audio 3.5mm, 1 x S/PDIF, 1 x RJ45 |
| Operating temperature (max) | 40°C |
| Net weight | 43.1 kg / 95.02 lbs |
| Gross weight | 60.8 kg / 134.04 lbs |
| Wireless - antenna | Optional Accessory |
| Wireless - technology | 802.11ac/b/g/n/a/ax |
| Wireless - operating frequency | 2.4G/5G |
| System | n/a |
Power
| Specification | Value |
|---|---|
| Power supply | 100-240V~ 50/60Hz |
| Power consumption (standby) | 0.5W |
| Power consumption (max) | 505W |
| Power consumption - average (watts) | 335 |
| Power consumption - Energy Star (watts) | 167 |
Operation System
| Specification | Value |
|---|---|
| System version | Android 11 |
| CPU | Quad A55 |
| GPU | Mali G51 |
| RAM | 4GB |
| Storage | 32GB |
| OSD / display languages | 17 languages: Arabic, Czech, Danish, Dutch, English, French, German, Italian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish |
