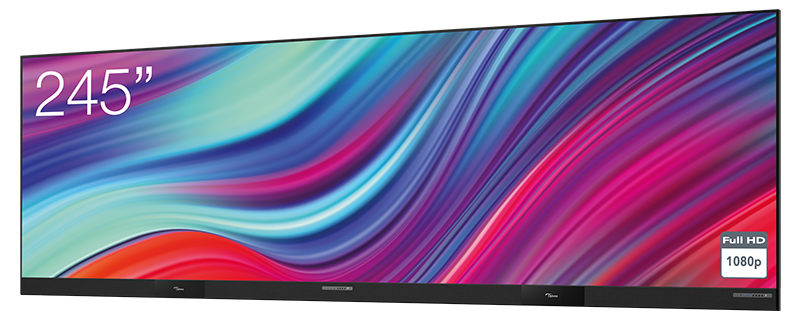

The UWC245 is a streamlined Full HD chip-on-board LED display designed for quick deployment, professional image quality, and long‑term reliability in corporate environments.
-
Full HD resolution with 700 nits brightness
- 15,000:1 contrast ration and 3840Hz refresh rate for smooth large format visuals
- Flip‑Chip COB LED technology for a seamless surface, improved durability, and energy efficiency
-
Fast installation with pre‑assembled columns and single‑cable power
-
Front‑serviceable, hot‑swappable tiles for easy maintenance
-
Built‑in Android OS, Display Share, and Optoma Management Suite Cloud (OMSC)
-
Integrated 60W speakers for powerful, all‑in‑one AV performance
Awards
Features
Pre‑assembled and pre‑calibrated, the UWC245 eliminates the complexity of traditional LED installs for a clean, professional finish.
Optoma Management Suite (OMS) enables remote monitoring, content management, and maintenance—reducing downtime, site visits, and operational costs.
Built‑in Display Share supports fast, cable‑free screen sharing, enabling efficient meetings and flexible working.
High brightness, strong contrast, and a seamless LED surface deliver reliable performance in well‑lit corporate spaces.
Robust COB Technology
Innovative COB LED design allows for a smoother screen, anti-glare surface, wide viewing angle and a more durable structure.
The encapsulated flip chip design provides the LEDs high degree of protection from various impacts and collisions and helps reduce heat.
COB technology minimises pixilation allowing for a crisp, detailed viewing experience with smooth colour transitions.
Fully optimised LED display
Optoma ProScene AIO range comes pre-calibrated out-of-the-box, removing the hassle of managing software and the various associated files, whilst ensuring the image is optimised for use straight away.
Optoma's ProScene displays support a wide viewing angle of Horizontal 160°, Vertical 160° allowing for image retention across a wide range of viewing locations.
Enhanced Audio with 2x 30w speakers on the base and 2x 15w speakers on each side creates immersive audio for maximum engagement within presentations or meetings.
Gallery
Accessories
Specifications
Screen
| Specification | Value |
|---|---|
| Screen resolution | ULTRA-WIDE (3840x1080) |
| Screen size (diagonal) | 245" |
| Screen size | 603.1 x 181.2cm / 237.44" x 71.34" |
| Minimum viewing distance | 3.2m / 10' 6" |
| Brightness (before calibration) | 700 nits |
| Contrast | 15000:1 |
| Dimensions (W x D x H) mm | 6031 x 31 x 1812 mm / 237.44" x 1.22" x 71.34" |
| Net weight | 219 kg / 482.81 lbs |
Screen processing
| Specification | Value |
|---|---|
| Scaler-switcher | Built in scaler-switcher |
| Sender | Built in sender |
LEDs
| Specification | Value |
|---|---|
| Pixel pitch (H x V) | 1.56mm |
| LEDs per pixel | 3 |
Pixels
| Specification | Value |
|---|---|
| Pixel configuration | 3-1 COB |
| LED face colour | Black |
Module
| Specification | Value |
|---|---|
| Active module width | 6031 mm / 237.44"mm |
| Active module height | 1812 mm / 71.34"mm |
| Viewing angle - horizontal | 160° |
| Viewing angle - vertical | 160° |
| Surface finish | Black |
| LED fixings | Front access |
| Storage temperature range | -10°C - 60°C / 14°F - 140°F°C |
| Operating temperature range | 0°C - 40°C / 32°F - 104°F |
Colour
| Specification | Value |
|---|---|
| Greyscale processing depth | 16 bits |
| Number of colours | 281 (trillions) |
| Refresh rate | >3840 Hz |
Brightness
| Specification | Value |
|---|---|
| Contrast ratio | 15000 |
| Brightness control levels | 100 |
Power
| Specification | Value |
|---|---|
| Input power (max) | 2,920watts per panel |
| Power supply | 100 - 240V |
Other
| Specification | Value |
|---|---|
| Lifespan | >100000 |
| Mounting frame | Optional |
Connectivity
| Specification | Value |
|---|---|
| Connections | Inputs 1 x HDMI 2.0, 3 x HDMI 1.4a (HDCP 1.4), 2 x USB-A 3.0, 1 x USB-C, 1 x Audio 3.5mm, 1 x USB-B service, 1 x RJ45 Outputs 1 x HDMI, 1 x Audio 3.5mm Control 1 x RS232 |
